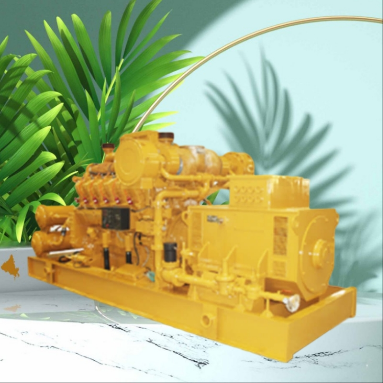

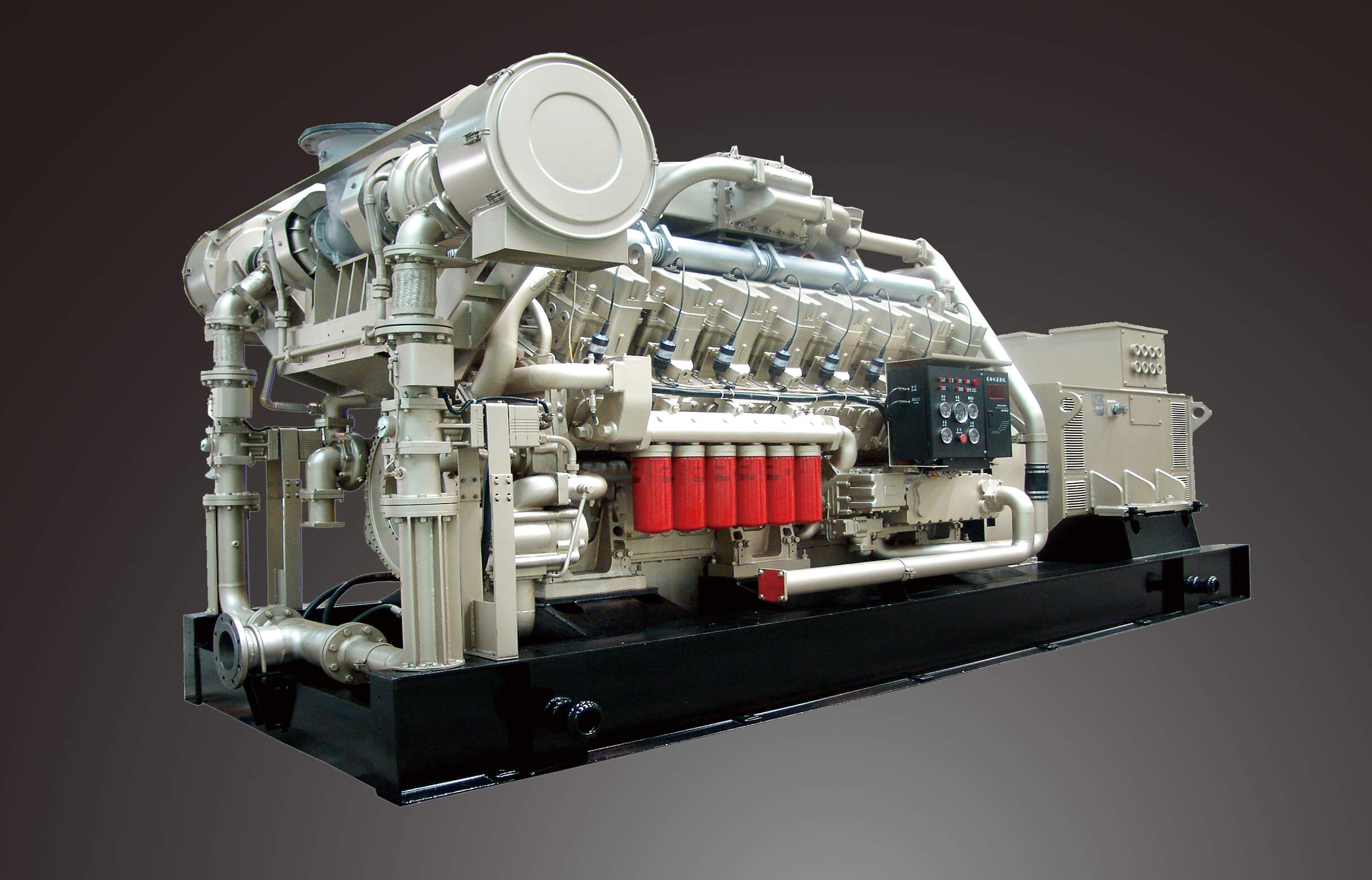

CNPCJCPC 500GF-T6 NATURAL GAS GEN-SET 500kW
ENGINE SPECIFICATIONS
V-12, 4-Stroke-Cycle-Engine (190 series)
Bore---190mm Stroke---210mm
Displacement---71.45L Aspiration
Turbocharged-After cooled
Speed Control---Electronic Speed governing
Rated Speed--1000rpm
Rated power---600kW
MAIN FEATURES
Engine Design
- Designed by JCPC
- Intellectual Property belong to JCPC
- Low Speed (1000RPM), More Reliable
- Advanced World Standard Performance
Generator
- Brushless Excitation
- AVR
- Better Insulation and Protection
Safety
- Low Oil Pressure Auto Stop Protection
- Over Speed Auto Stop Protection
- Explosion Proof
- High Coolant Temperature Alarm
- Low Coolant Level Alarm
- High Oil Temperature Alarm
- Complete Electrical Protection
- Emergency Stop Device
Property Parameter Table
Testing
- Strict Inspection and Factory Test for Each Gen-set
- Start Performance Test
- Load Test
- Synchronization Test
- Safety System Test
The Whole Equipment Supply
- Standard Scope of Supply
- Repairing Tools
Easy Installation and Remove
- All Equipment on Common Skid Three-Point Support
- Simple Installation Work
- High Strength Skid, for Hoisting and Removing.
Technical Support & Services
- Technical Support and Training Service
- 24/7 Technical Service Tel Number
- Rapid Spare Parts Supply
- After Sales Service for Generator Set Lifetime
|
Model |
500GF-T6 |
|
Engine type |
12V190ZDT1-2 |
|
Alternator type |
1FC series(SIEMENS technology) |
|
Rated Power * kW/kVA |
500/625 |
|
Rated Speed rpm |
1000 |
|
Rated Frequency Hz |
50 |
|
Rated Voltage V |
400/230 |
|
Rated voltage A |
902 |
|
Rated PF |
0.8 lag |
|
Voltage Regulation |
AVR |
|
Wiring Type |
3 Phase 4 Wire |
|
Governor |
Woodward 2301A |
|
Weight kg |
13500 |
|
Dimension( L×W×H) mm |
5240×2200×2800 |
*Rating and fuel consumption based on ISO Standard conditions (Ambient temperature at 25 degree Centigrade, Atmospheric pressure at 100kPa and Relative humidity at 30%). Site rating and fuel consumption should amend according to relative standard (The table at right side for reference )
Main Specification of Engine
|
Model of engine |
12V190ZDT1--2 |
|
Rated Power(kW) |
600kW |
|
Rated Speed(r/min) |
1000 |
|
No. and layout of cylinders |
12-cylinder，60°Vee |
|
Type |
Four strokes, closed cooling type, Water cooled, Electrical controller, Mixed after compressor, Turbocharged and intercooled. |
|
Heat consumption(kJ/kW·h) |
≤11386 |
|
Specific oil consumption (g/kW.h) |
≤1.63 |
|
Bore(mm) |
190 |
|
Stroke (mm) |
210 |
|
Total displacement (L) |
71.5 |
|
Governor |
Electronic Governor |
|
Exhaust temperature （before turbo） |
≤650℃ |
|
Starting mode |
24V DC electric starting motor |
|
Direction of rotation |
Counter-clockwise(facing to flywheel) |
|
Lubrication method |
Pressure and splash lubrication |
|
Hot water outlet temperature |
<90℃ |
|
Mid-cooler inlet water temperature |
<45℃ |
|
Oil temperature |
<90℃ |
|
Stable regulating rate |
0～5 % adjustable |
|
Cooling method |
Forced water cooling Vertical radiator |
|
Lube trademark |
15W40CD |
|
Manufacturer |
CNPC Jichai Power Equipment Company |
|
Overhaul period |
30000h |
Main Specification of Alternator
|
Model of alternator |
1FC series(SIEMENS technology) |
|
Rated power(kW/kVA) |
500/625 |
|
Rated voltage(V) |
400 |
|
Rated current (A) |
902 |
|
Rated frequency (Hz) |
50 |
|
Power factor |
COS￠=0.8 |
|
Rated Speed (rpm) |
1000 |
|
Efficiency (%) |
93.4 |
|
Wiring mode |
Three-phase four-wire system（Y） |
|
Excitation mode |
Brushless excitation |
|
Coupling |
Elastic |
|
Voltage regulation |
±1% single generator running, ±2.5% parallel running in steady state . -15%～+20% in transient state. |
|
Insulation class |
F |
|
Running mode |
Continuous S1 |
|
Protective class |
IP23 |
|
Installation Method |
IM B20 |
|
Bearing structure |
Duplex bearing |
|
Rotating direction |
Anticlockwise(Facing to input end) |
Natural Gas Engine
Air inlet system
Air Filter Air Cooler Bracket
Control system
Run/Stop control
Governor
Control Panel (Manual parallel)
Instrument panel
Explosion Proof
Safety Protection System
Exhaust system
Exhaust Gas Turbocharger Exhaust Manifold Corrugated Pipe
Exhaust Pipe Exhaust Elbow Exhaust Silencer
Cooling system
Vertical Radiator (hydrocoupling drive)
OPTIONAL EQUIPMENT
Lubricating System
Oil pre-heating device AC380V Lube Oil Tank
Control system
Control Panel (Automatic parallel)
Data acquisition unit
Others
Change control cable length according to site demand
Maintenance service
Starting System
DC Starting Motor
Electric Starter 24 Volt
Lubricating System Main Oil Pump Lube Oil Filter Lube Oil Cooler
Lube Oil Centrifugal Filter
Alternator
Brushless Excitation Alternator
AVR (Analog Mode)
Spares
Normal Repair Tools Special Spare Parts Technical Document
Others
Common Skid
Elastic Coupling
Cooling System
Pre-heating device for high and low temperature coolant
Water softening device
Alternator
Other brand alternator
Spare Parts and Tools
Spare Parts for 2 years use
