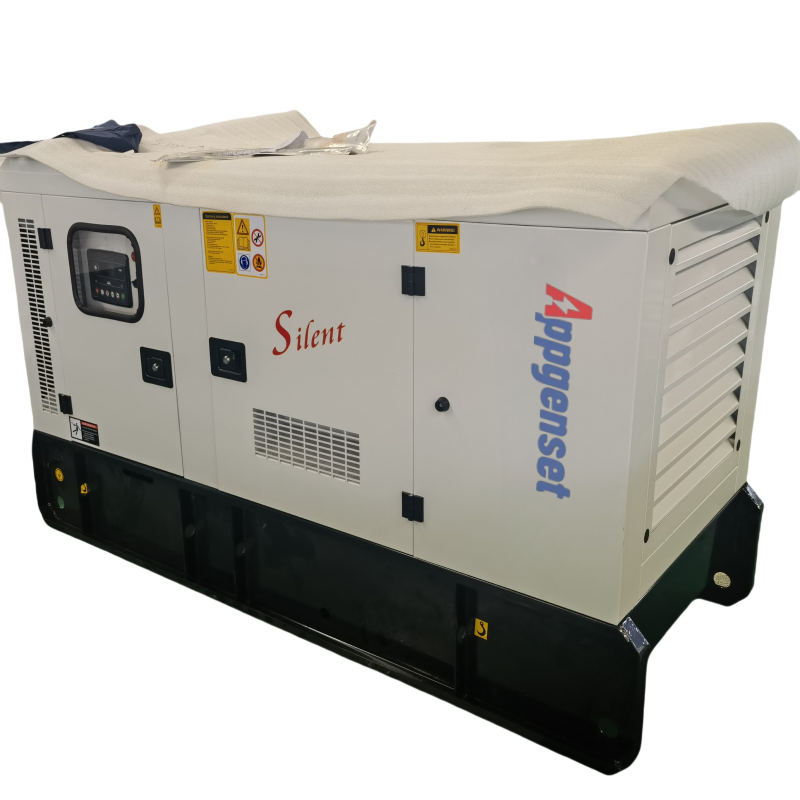

| Genset Model | Silent Type | Y12GES | |
| Standby Power (KW/KVA) | 10/12 | ||
| Prime Power(KW/kVA) | 9/11 | ||
| Yangdong Diesel Engine | Model | YD380D | |
| Type | water-cooled, in line, 4-stroke, direct injection | ||
| Rated Power(kW) | 12 | ||
| Aspiration | Air natural aspirated | ||
| No.of Cylinder | 3 | ||
| Bore x Stroke(mm) | 80x90 | ||
| Displacement | 1.131 | ||
| Compression Ratio | 18:1 | ||
| Noise Level (dBA) | 75 | ||
| Electronic Governor Rate | ≦1% | ||
| Exhaust Temperature(°C) | 380 | ||
| Lub oil Capacity(L) | 3.5 | ||
| Rated Fuel Consumption75% (L/h) | 1.4 | ||
| Stamford technology Alternator | Model | BC164A | |
| Standby Power(kW/kVA) | 11/12 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless 100% copper | ||
| Controller | Smartgen brand | HGM420 | |
| Fuel tank | sub-base | 8hrs working capacity | |
| Overall Size(mm) | Length | 1800 | |
| Width | 870 | ||
| Height | 1000 | ||
| Gross Weight(kg) | 710 | ||
| With battery, battery charger,shock absorber ,manual book etc. | |||
| All technologies are subject to the interpretation of the technology department, subject to change without notice. | |||
