best natural gas generator

best  natural gas generator

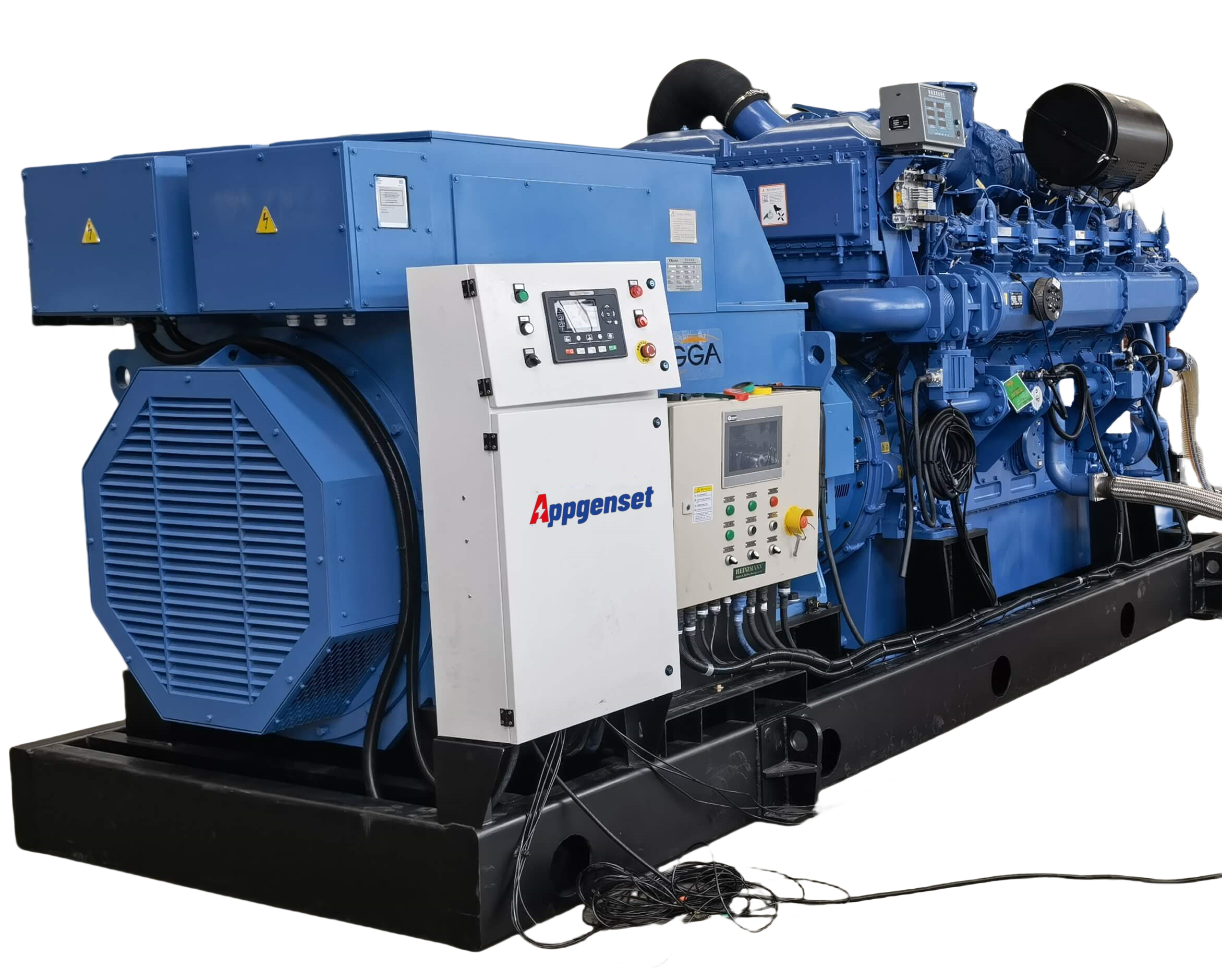

YC16VTDG-1000N5LC series gas genset is an automatic genset

independently developed by Yuchai based on years of market

application experience by introducing advanced genset technologies at

home and abroad. The genset is equipped with a mature gas control

system. After Yuchai's rigorous mechanical development verification

and standardized combustion development technology optimization,

this series of gas genset is characterized by high reliability, high

efficiency and environmental friendliness, and low maintenance cost,

and can meet the needs of different users.

Genset parameters

Model .............................................................YC16VTDG-1000N5LC

Rated power.......................................................... 1000kW/1250kVA

Rated speed.........................................................................1500r/min

Rated voltage...........................................................................400V

Rated current ........................................................................... 1804.3A

Frequency....................................................................................50Hz

Power factor....................................................................0.8（lagging）

Electrical efficiency......................................................................≥42%

Gas consumption ..................................................................245.5m³/h

Noise.......................................................................≤100.3dB(A)@1m

Starting mode.......................................................................Electronic

Heat balance parameters

Coolant heat of cylinder liner (±8%) ....................................... 328kW

Coolant heat of oil cooler (±8%).............................................. 197kW

Coolant heat in the primary stage of intercooler (±8%)........... 139kW

Total coolant heat of high-temperature cooling system(±8%)

.............................................................................................. 664kW

Coolant heat in the secondary stage of intercooler(±8%)

..................................................................................................102kW

Total coolant heat of low-temperature cooling system (±8%)

.................................................................................................102kW

Waste heat of exhaust gas (with the exhaust gas temperature up to

120°C) (±8%): ........................................................................621kW

Total radiant heat (±8%) .......................................................... 84kW

Cooling parameters

Flow rate of High-temperature circulating cooling liquid

.............................................................................................. 60m³/h

Inlet temperature of High-temperature circulating cooling

liquid (±2%) ......................................................................... 75.1℃

Outlet temperature of High-temperature circulating cooling

liquid (±2%) ................................................................................ 86℃

Flow rate of low-temperature circulating cooling liquid..............60m³/h

Inlet temperature of Low-temperature circulating cooling

liquid (±2%) ................................................................................ 40℃

Outlet temperature of Low-temperature circulating cooling

liquid (±2%) ............................................................................. 41.7℃

Intake and exhaust parameters

Air intake........................................................................ 5253.2kg/h

Gas intake.......................................................................... 184.1kg/h

Exhaust flow ..................................................................5437.3kg/h

Exhaust temperature after turbocharger (±5%)......................... 410℃

Alternator parameters

Alternator model .............................................................YC-1000-4L

Wirin mode ............................. three-phase four-wire system (Y type)

Voltag regulation mode................................................................AVR

IP grade ......................................................................................... IP23

Insulation class................................................................................. H

Temperature Rise Rating ................................................................. F

Engine parameters

Engine model. . . . . . . . . . . . . . . . . . . . . . . . . . .. ..YC16VTD1830N-D30

Rated power ........................................................................... 1220kW

Rated speed ........................................................................ 1500r/min

Number of cylinders........................................................................ 16

Form.............................................V-type, four-stroke, water-cooling

Bore × stroke.........................................................152mm×180mm

Displacement............................................................................52.3L

Control system ..........................................................................ECU

Oil consumption rate...................................................... ≤ 0.3g/kWh

Coolant capacity (excluding radiator) ......................................... 170L

Oil capacity ...............................................................................280L

Overhaul interval....................................................................40000h

Test conditions

Calorific value of gas ...................................................... 9.7kWh/m³

Volume content of methane........................................................≥96%

Gas temperature ....................................................................10~40℃

Gas intake pressure（Before regulator）...........................30~50kPa

Gas intake pressure（After regulator）.................................8~15kPa

Air intake negative pressure ...................................................＞-3kPa

Exhaust back pressure.............................................................. ＜5kPa

Absolute atmospheric pressure...........................................101.32kPa

Ambient temperature...................................................................25℃

Relative humidity...................................................................... ≤30%

Altitude .................................................................................≤1000m

Note:

①All data of the gas generator set is measured under the above test

environment.

②Coolant is based on 50% glycol solution.

OPTIONAL CHP

• Low Emission and Eco-Conscious: A cleaner alternative to traditional diesel genset, ideal for modern industrial compliance.
• Whisper-Quiet Performance: Designed as a silent generator, reducing noise in sensitive environments.
• Backed by Genset Experts: From one of the most reliable genset manufacturers and generator manufacturers in the industry.
• Ready for Critical Power Needs: Operates as an efficient emergency generator, standby generator, or base load unit.
• Durable and Scalable: Suitable for integration into multi-unit systems for those requiring high-capacity industrial generator setups.

About Us

APPGENSET is a trusted manufacturer specializing in diesel and gas generators, as well as customized energy storage solutions, committed to delivering reliable power systems for global industrial, commercial, and residential applications.

Core Manufacturing Strengths & Quality Assurance

• Precision Manufacturing Facilities：APPGENSET operates advanced production lines that support scalable manufacturing of high-performance diesel and gas generators.
• Strict Quality Control Protocols：Every unit undergoes multiple testing phases to ensure compliance with international standards, ensuring product safety, durability, and efficiency.
• Flexible Customization Capabilities：From OEM branding to color customization and specification adjustments, we tailor our products to align with customer needs and market requirements.

Production Capacity in Numbers

• Diesel Generators: Ranging from 5KVA to 4000KVA
• Gas Generators: Covering 30KVA to 6000KVA
• Typical Delivery Lead Time: 2 to 6 weeks based on model and volume
• Experience: Over 14 years in the power generation equipment industry

Sustainable Manufacturing Commitment

We integrate environmentally responsible practices throughout our operations by optimizing energy efficiency and reducing waste in both production and packaging.

How We Work With You

• Initial Consultation – We assess your power needs and application scenarios.
• Solution Design – Customized systems are configured to match performance and budget goals.
• Production – Manufactured to order with strict quality controls.
• Logistics & Delivery – Shipped efficiently with international documentation support.
• After-Sales Support – Warranty coverage (1 year or 1000 hours) with technical guidance and spare parts availability.

Global Reach, Local Understanding

With extensive international export experience, APPGENSET serves clients in Asia, Africa, the Middle East, South America, and beyond. We ensure regional compliance, multilingual communication, and flexible shipping arrangements to meet diverse market demands.

Partner with APPGENSET for dependable, efficient, and tailor-made power generation solutions — built to perform, designed to last.

FAQ

Who are we?

APPGENSET is a professional manufacturer of diesel and gas generators and energy storage systems, serving customers worldwide with tailored power solutions.

How can we guarantee quality?

• Full pre-delivery inspection and factory testing
• Compliance with international quality certifications
• Durable components from trusted global suppliers

What can you buy from us?

• Diesel generators (5KVA–4000KVA)
• Gas generators (30KVA–6000KVA)
• Energy storage systems
• OEM and customized generator sets

Why should you buy from us and not from other suppliers?

• Over 14 years of industry experience
• Competitive pricing with no compromise on quality
• OEM/ODM support and customization flexibility
• Reliable lead times and global delivery capability

What services can we provide?

• Free technical consultation
• Tailored design and configuration
• Fast production and shipping
• After-sales support including warranty and spare parts
