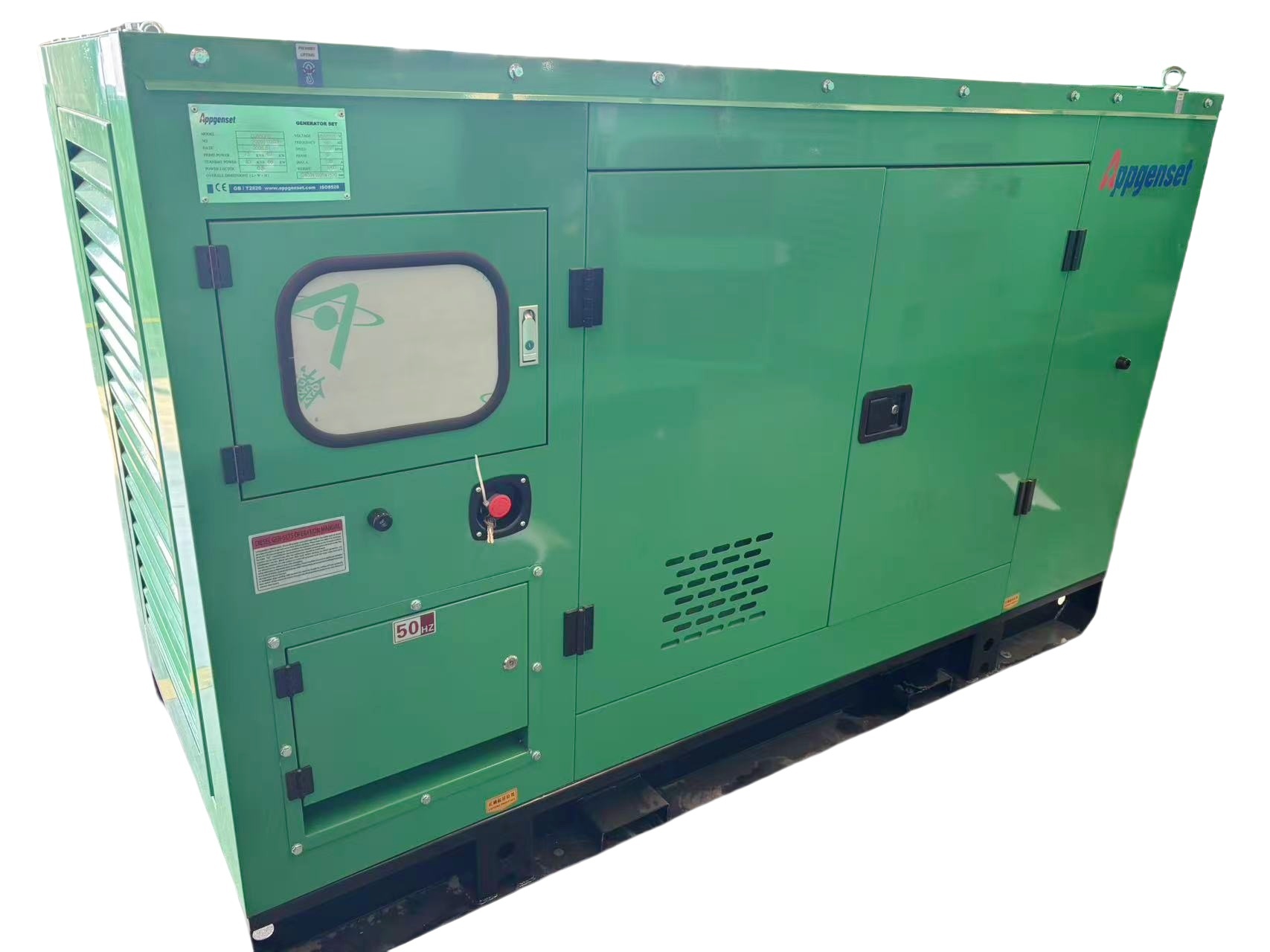

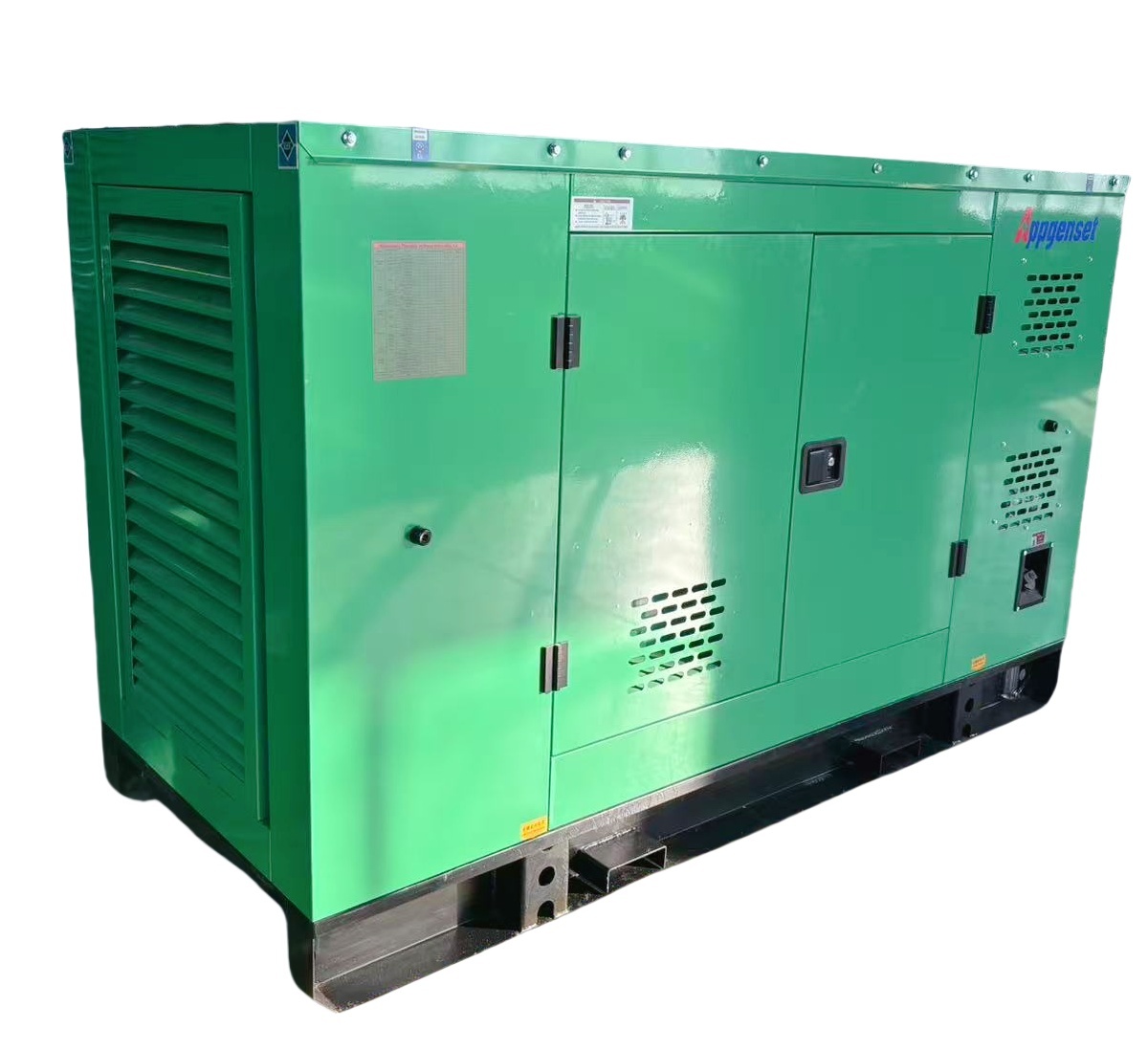

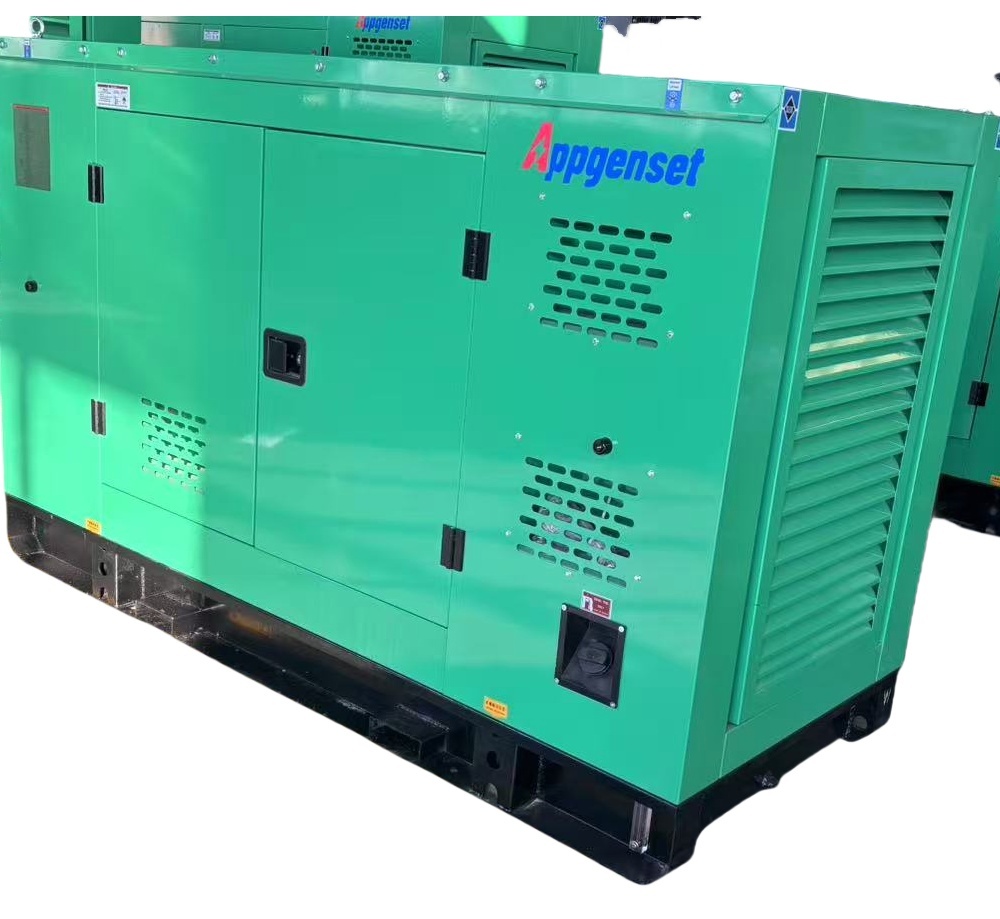

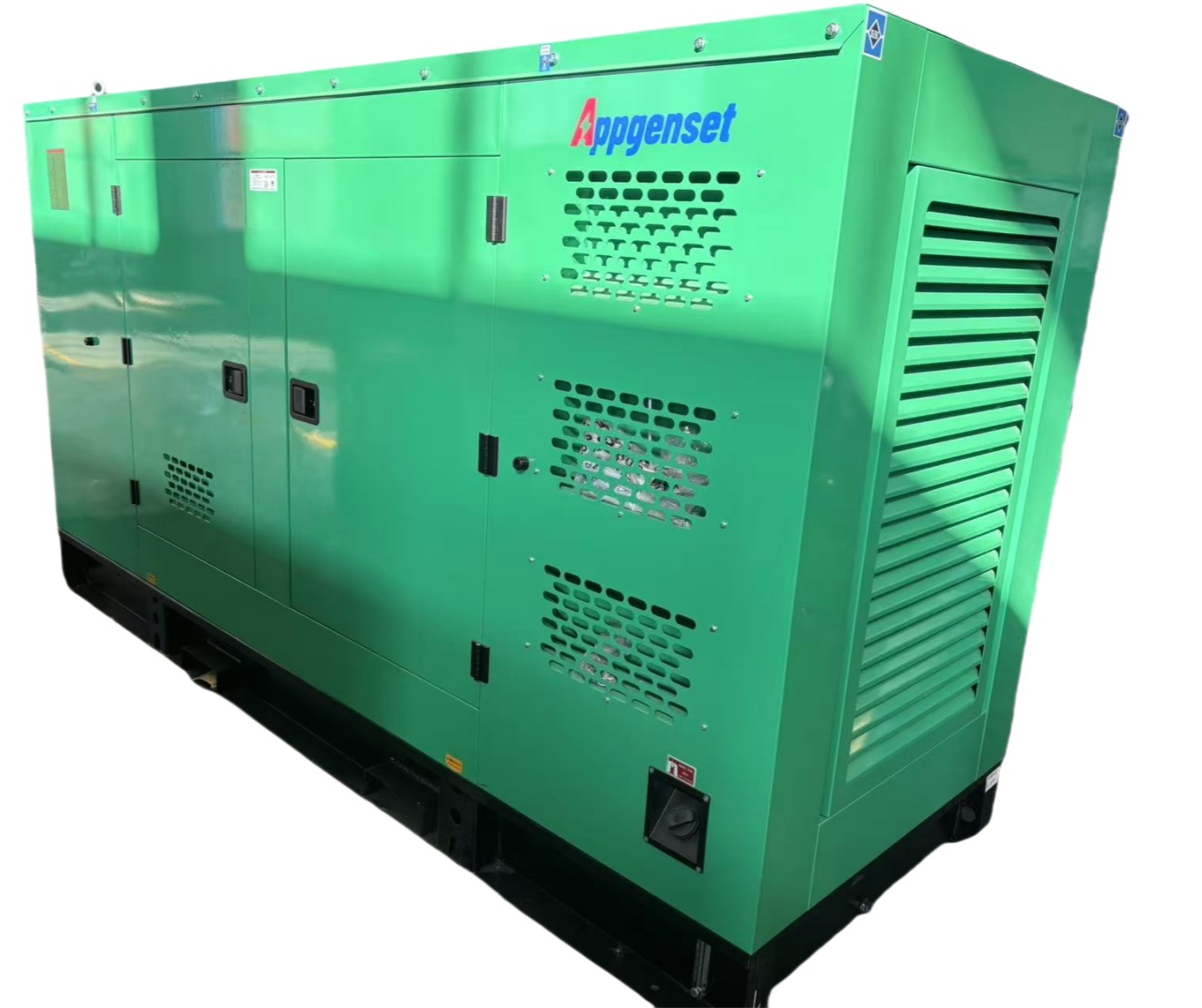

80KVA 60KW YUCHAI diesel generator silent type 50HZ

No.AY80GFS
Need a trustworthy power source? Our 80KVA generator set fits the bill. It's built for high - performance and reliability across various scenarios.

Powerful & Efficient
The generator uses a top - notch engine to deliver a stable 80KVA output. It easily powers multiple devices, offering the initial power surge and steady electricity. Fuel - saving tech cuts costs and emissions, ensuring the engine runs efficiently, maximizing fuel use.

Versatile Applications
Great for commercial spots like big stores or offices as backup during outages. In industrial zones, it keeps factories running by powering machinery. At home, it maintains comfort by running key appliances when the grid fails. Event venues also rely on it for lighting and sound. It's simple to install and maintain, with a user - friendly panel and worldwide service support. Opt for our 80KVA set for a reliable power solution。
64KW 80KVA YUCHAI GENERATOR
Voltage:400V/1500r/m Frequency:50Hz Power factor:0.8-1 Phase: 3Ph Protection degree: IP23 Insulation Class: H Efficiency more than: 85% Generator passed CE certificate Generator passed ISO certificate
  • YUCHAI 80KVA GENERATOR
  • 80KVA GENERATOR
  • YUCHAI GENERATOR 80KVA
  • CHINESE GENERATOR 80KVA

Description

Genset Model Silent Type AY85GFS
Prime  Power(kW/kVA) 60/75
 Diesel Engine  Brand YUCHAI
Model YC4A100Z-D25
Type water-cooled, in line, 4-stroke, direct injection
Prime Power(kW) 70
Intake Type Turbocharged
No.of Cylinder 4.L
Bore x Stroke(mm) 110x125
Displacement 4
Compression Ratio 17.5:1
Electronic Governor Rate 1%
Noise Level (dBA) 75
Exhaust Temperature(°C) 400
Lub oil Capacity(L) 18
Rated Fuel Consumption(L/h) 16.7
  Alternator Model 224F
Prime Power(kW/kVA) 60/75
Power Efficiency 89.6%
Voltage Regulation ±1
Excitation Type Brushless
Insulation Class H
Controller Smartgen brand HGM6120
Fuel tank sub-base  8hrs
ATS with
Overall Size(mm) Length 2450
Width 1050
Height 1400
Gross Weight(kg) 1200
With fuel tank ,oil heater and water heater,battery, battery charger, battery holder,fuel meter,rubber shock absorber
