Genset Model |

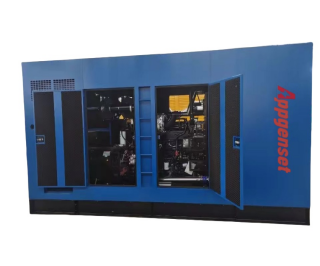

Silent Type |
CU650GES |
|
|
Standby Power (KW/KVA) |
520/650 |
||
|
Prime Power(KW/kVA) |
472/590 |
||
|

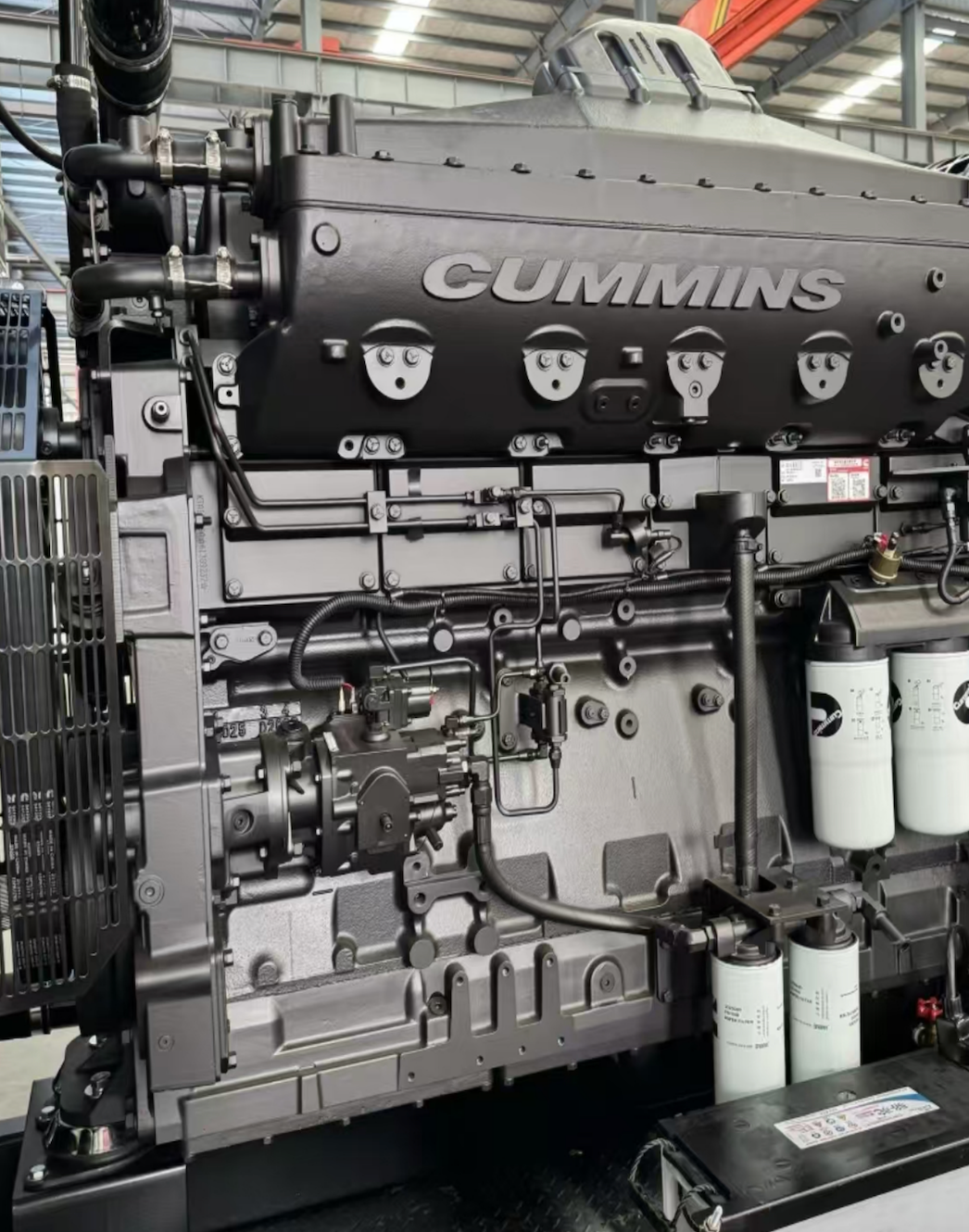

CUMMINS Diesel Engine |
Model |
QSZ13-G11 |
|
|
Type |
water-cooled, in line, 4-stroke, |
||
|
Standby Power(kW) |
563 |
||
|
Aspiration |
Turbocharged and intercooling |
||
|
No.of Cylinder |
6 |
||
|
Bore x Stroke(mm) |
130x163 |
||
|
Displacement |
13 |
||
|
Compression Ratio |
17:1 |
||
|
Electronic Governor Rate |
≦1% |
||
|
Exhaust Temperature(°C) |
446 |
||
|
Lub oil Capacity(L) |
78 |
||
|
Rated Fuel Consumption75% (L/h) |
91 |
||
|
Stamford tech Alternator |
Model |
HC534ES |
|
|
Prime Power(kW/kVA) |
500/625 |
||
|
Voltage Regulation |
≦±1 |
||
|
Excitation Type |
Brushless |
||
|
Controller |
UK Deepsea brand |
DSE6120 |
|
|
Fuel tank |
sub-base |
8hrs working capacity |
|
|
Overall Size(mm) |
Length |
4350 |
|
|
Width |
1600 |
||
|
Height |
2400 |
||
|
Gross Weight(kg) |
4900 |
||
|
With fuel tank, battery, battery charger,shock absorber , manual book etc. Remark:optional brand alternator and controller also available |
|||
