| VOLVO DIESEL GENERATOR SPECIFICATION | |||
| Voltage:400/230V/1500r/m | |||
| Frequency:50Hz | |||
| Power factor:0.8 | |||
| Phase:3Ph | |||
| Protection degree: IP23 | |||
| Insulation Class: H | |||
| Efficiency more than: 85% | |||
| warranty:one year or 1000running hrs whichever comes first. | |||

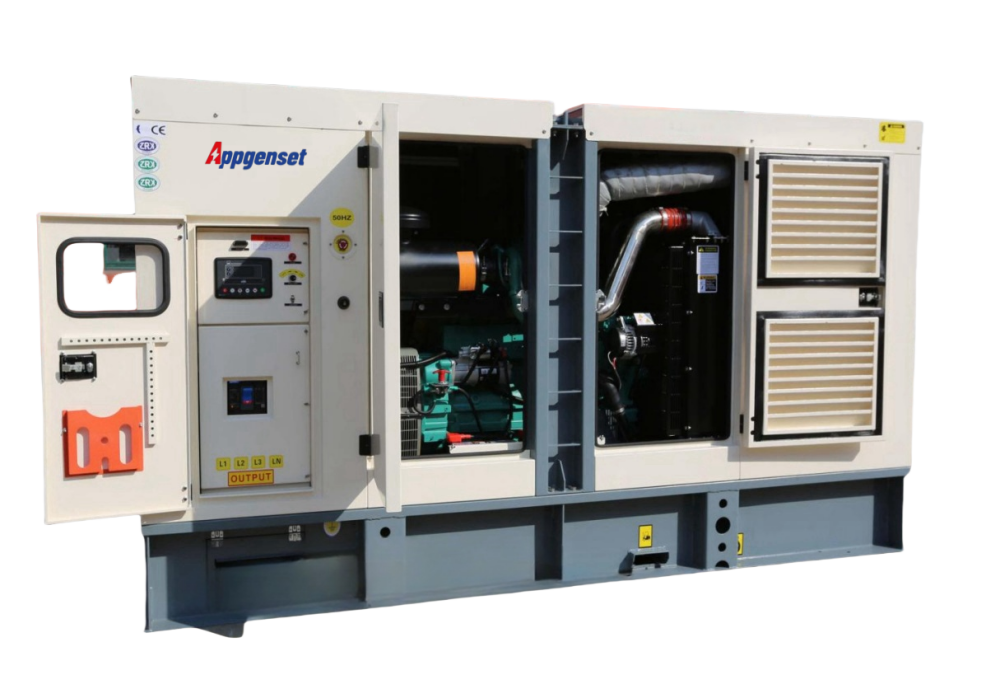

| Genset Model | Silent Type | V750GFS | |
| Standby Power (KW/KVA) | 660/825 | ||
| Prime Power(KW/kVA) | 600/750 | ||
| VOLVO Diesel Engine | Model | TWD1744GE | |
| Type | water-cooled,inline, 4-stroke | ||
| Rated Power(kW) | 645 | ||
| Aspiration | Turbocharged | ||
| No.of Cylinder | 6 | ||
| Bore x Stroke(mm) | 149x165 | ||
| Displacement | 17.26 | ||
| Compression Ratio | 16.5:1 | ||
| Electronic Governor Rate | ≦1% | ||
| Lub oil Capacity(L) | 52 | ||
| Coolant capacity(L) | 90 | ||
| Rated Fuel Consumption75% (g/kw*h) | 194 | ||
| Stamford original Alternator | Model | S5L1D-H41 | |
| Prime Power(kW/kVA) | 600/750 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless | ||
| Controller | Deepsea brand | DS6120 | |
| Breaker | ABB brand | 3P | |
| Canopy | 1)Brand new top quality steel frame, with whole protect, prevent rust, prevent deformation, The canopy use of 2mm thick cold treatment steel plate. Anti-corrosion and anti-rust treatment by spray plastic process will not lose color for long time considering. 2)Scientific internal structure and the use of special noise reduction materials to suppress mechanical noise to a large extent.industrial class silencers | ||
| Fuel tank | base | Silent shell Truss, double-deck tank chassis. The chassis main beam use 6mm thick steel plate, 8hrs working capacity | |
| Overall Size(mm) Approximate size, subject to actual | Length | 5000 | |
| Width | 1600 | ||
| Height | 2470 | ||
| Gross Weight(kg) | 6000 | ||
| With 24v DC maintenance free battery, battery charger,shock absorber ,Test report of gensets, Set of drawings and O&M manuals (Engine & Alternator & Controller & Genset) white color etc. | |||
| All technologies are subject to the interpretation of the technology department, subject to change without notice. | |||
