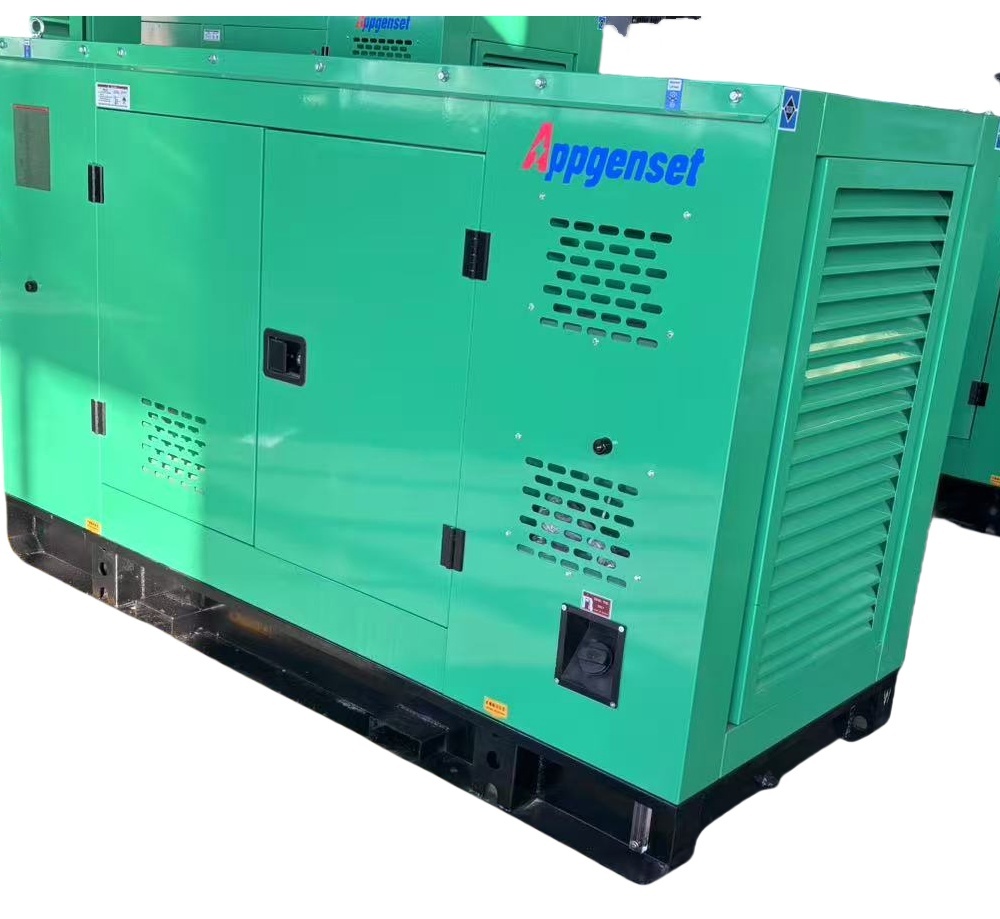

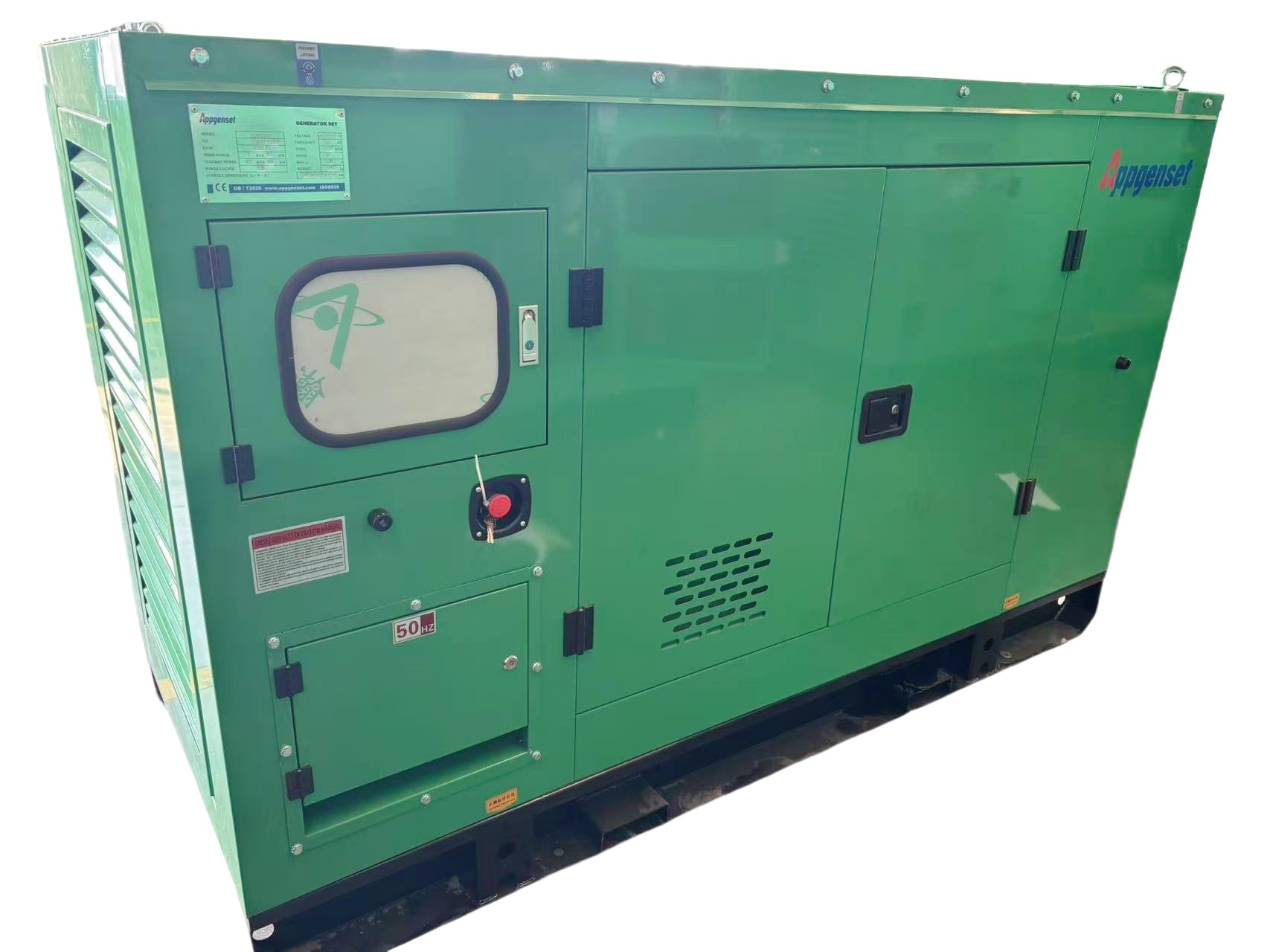

55KVA 44KW YUCHAI SILENT GENERATOR 50HZ

No.AY55GFS
The 55KVA Yuchai Generator Set is a compact yet powerful unit. It uses a high - quality Yuchai engine, ensuring stable 55KVA power output for handling diverse electrical loads.

This set shines in fuel efficiency. Yuchai's smart fuel - injection tech cuts down on fuel use, slashing running costs and reducing emissions. Maintenance is a breeze with accessible parts and support from Yuchai's wide service network.

It has wide applications. For small businesses like cafes or offices, it's a reliable backup during outages. At home, it powers fridges, lights and ACs when the grid fails. Construction sites use it to run tools, and it keeps telecom towers running. In short, the 55KVA Yuchai Generator Set offers reliable, efficient power for various needs.
55KVA YUCHAI GENERATOR
Voltage:400V/1500r/m Frequency:50Hz Power factor:0.8-1 Phase: 3Ph Protection degree: IP23 Insulation Class: H Efficiency more than: 85% Generator passed CE certificate Generator passed ISO certificate
  • yuchai generator 55kva
  • generator 55kva
  • generator 44kw
  • yuchai generator with ATS

Description

Genset Model Silent Type AY55GFS
Prime  Power(kW/kVA) 40/50
 Diesel Engine  Brand YUCHAI
Model YC4D90Z-D25
Type water-cooled, in line, 4-stroke, direct injection
Prime Power(kW) 60
Intake Type Turbocharged
No.of Cylinder 4.L
Bore x Stroke(mm) 108x115
Displacement 4
Compression Ratio 17.5:1
Electronic Governor Rate 1%
Noise Level (dBA) 75
Exhaust Temperature(°C) 650
Lub oil Capacity(L) 11
Rated Fuel Consumption(L/h) 16.4
  Alternator Model 224D
Prime Power(kW/kVA) 40/50
Power Efficiency 89.6%
Voltage Regulation ±1
Excitation Type Brushless
Insulation Class H
Phases 3P
Voltage 400/230V
Controller Smartgen brand HGM6120
Fuel tank sub-base  8hrs
ATS with
Overall Size(mm) Length 2450
Width 1030
Height 1300
Gross Weight(kg) 1000
With fuel tank ,oil heater and water heater,battery, battery charger, battery holder,fuel meter,rubber shock absorber
