| Specification | Details |
|---|---|
| Product Name | Silent Diesel Generator |
| Voltage | 400/230/132/220/380/440/254 V etc |
| Frequency | 50/60 Hz |
| Phases | 3 Phase (1p optional) |
| Fuel Tank Capacity | Standard Base with 8 Hours Capacity(10/12/24hrs optional) |
| Engine | Motor by Cummins |
| Alternator | Stamford/ leroysomer/Stamford Technology |
| Controller | SmartGen or DeepSea etc |
| Governor | Electric Governor (machinery optional) |
| Delivery Time | Two Weeks Delivery from China normally |
| 550KVA DIESEL GENERATOR SPECIFICATIONS | |||
| Voltage:230/400V/1500r/m | |||
| Frequency:50Hz | |||
| Power factor:0.8 | |||
| Phase:3Ph 4Wr | |||
| Protection degree: IP23 | |||
| Insulation Class: H | |||
| Efficiency more than: 85% | |||
| Generator passed ISO certificate | |||

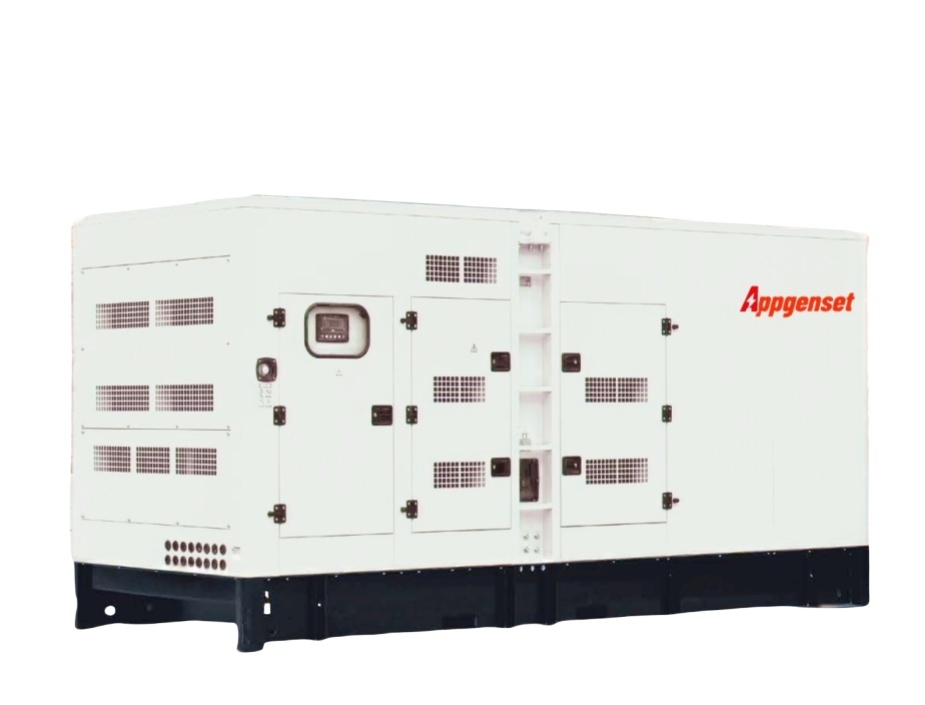

| Genset Model | Silent type | CU550GFS | |
| Standby Power(kW/kVA) | 440/550 | ||
| Prime power(KW/KVA) | 400/500 | ||

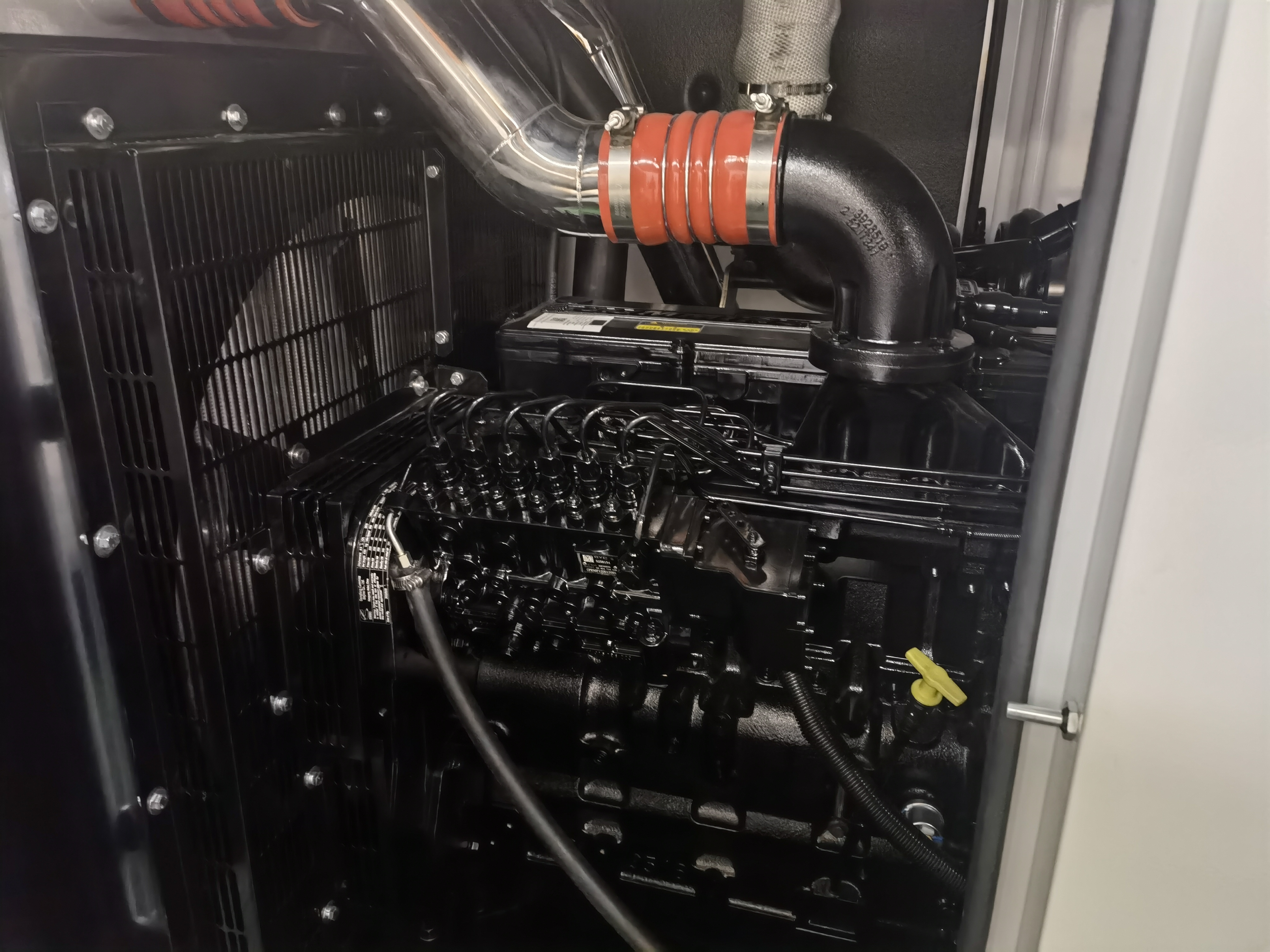

| Diesel Engine | Brand | CUMMINS | |
| Model | QSZ13-G3 | ||
| Type | water-cooled,inline, 4-stroke,direct injection , | ||
| rated Power(kW) | 450 | ||
| Aspiration | Turbocharged & charge air cooled | ||
| No.of Cylinder | 6 | ||
| Bore x Stroke(mm) | 130x163 | ||
| Compression Ratio | 17:01 | ||
| Piston speed m/s | 9.78 | ||
| Electronic Governor Rate | ≦1% | ||
| Exhaust Temperature(°C) | 547 | ||
| Lub oil Capacity(L) | 45.42 | ||
| Rated Fuel consumption (L/h) | 74.2 | ||
| Displacement（L） | 13 | ||
| Governing Type | Electrical | ||
| Stamford technology Alternator | Model | HC534D | |
| Rated Output(KW/KVA) | 400/500 | ||
| Power Efficiency | 94.40% | ||
| Voltage Regulation | ≦±1.0 | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
| Controller | brand & model | UK deepsea DSE6120 | |
| Overall Size(mm) | Length | 4350 | |
| Width | 1600 | ||
| Height | 2400 | ||
| Gross Weight(kg) | 4700 | ||
| 20GP Loading quantity(set) | 1 | ||
| 40GP Loading quantity(set) | 2 | ||
