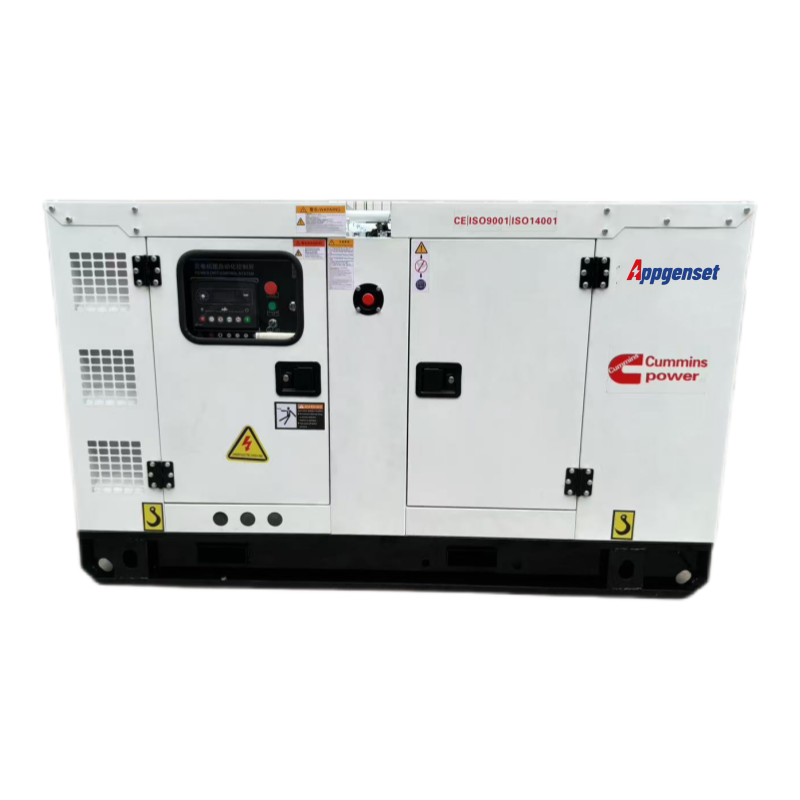

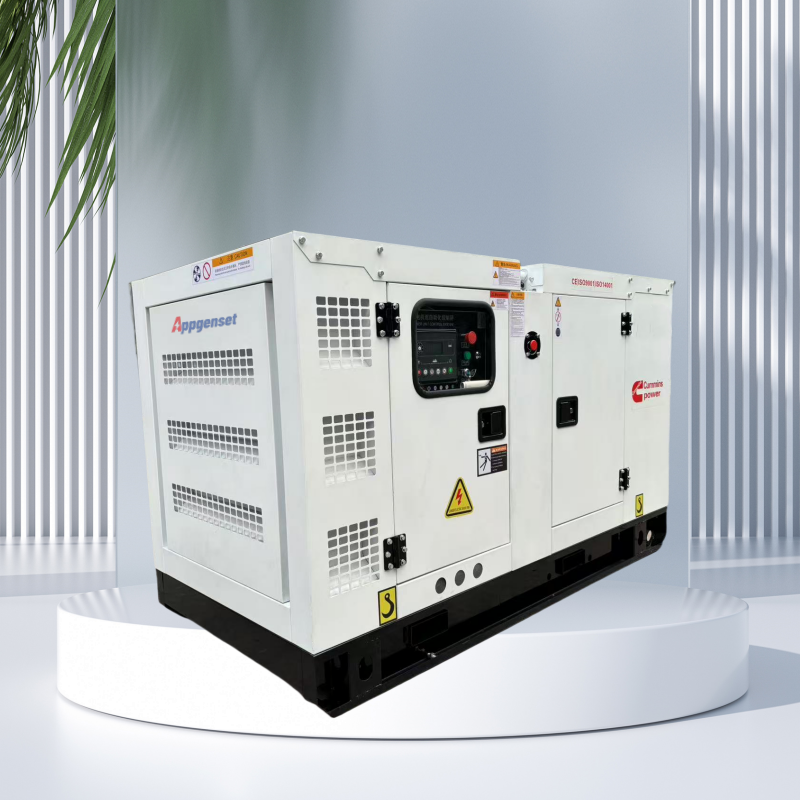

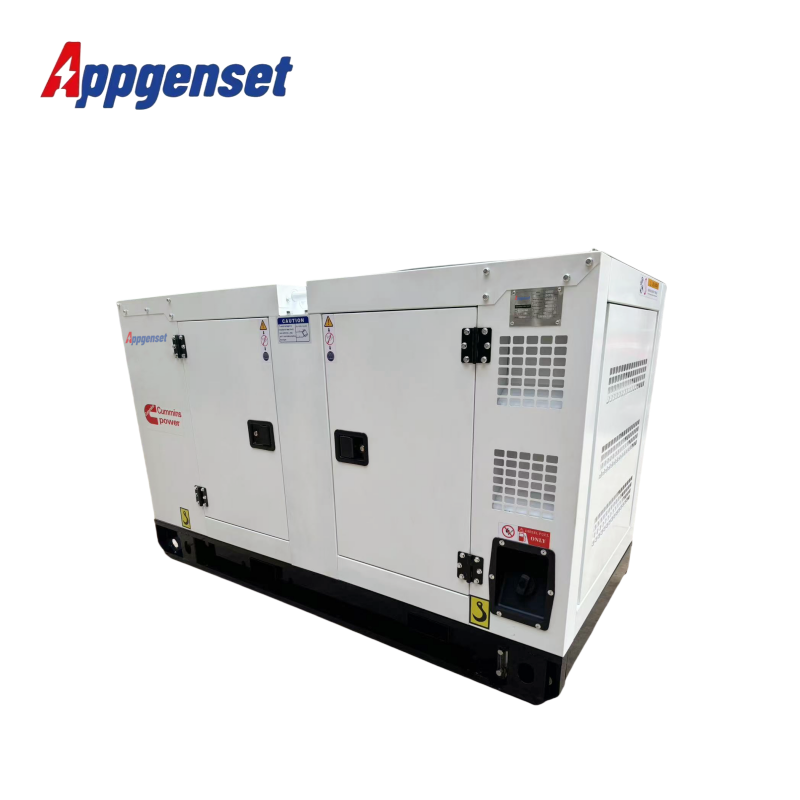

| Genset Model | Silent Type | CU70GFS | |
| Prime Power(kW/kVA) | 50/62.5 | ||
| Diesel Engine | Brand | Cummins | |
| Model | 4BTA3,9-G2 | ||
| Type | water-cooled, in line, 4-stroke, direct injection | ||
| Prime Power(kW) | 60 | ||
| Intake Type | Turbocharged | ||
| No.of Cylinder | 4.L | ||
| Bore x Stroke(mm) | 102x120 | ||
| Displacement | 3.9 | ||
| Compression Ratio | 17.3:1 | ||
| Electronic Governor Rate | ≦1% | ||
| Noise Level (dBA) | 105 | ||
| Exhaust Temperature(°C) | 526 | ||
| Lub oil Capacity(L) | 11 | ||
| Rated Fuel Consumption(L/h) | 12.2 | ||

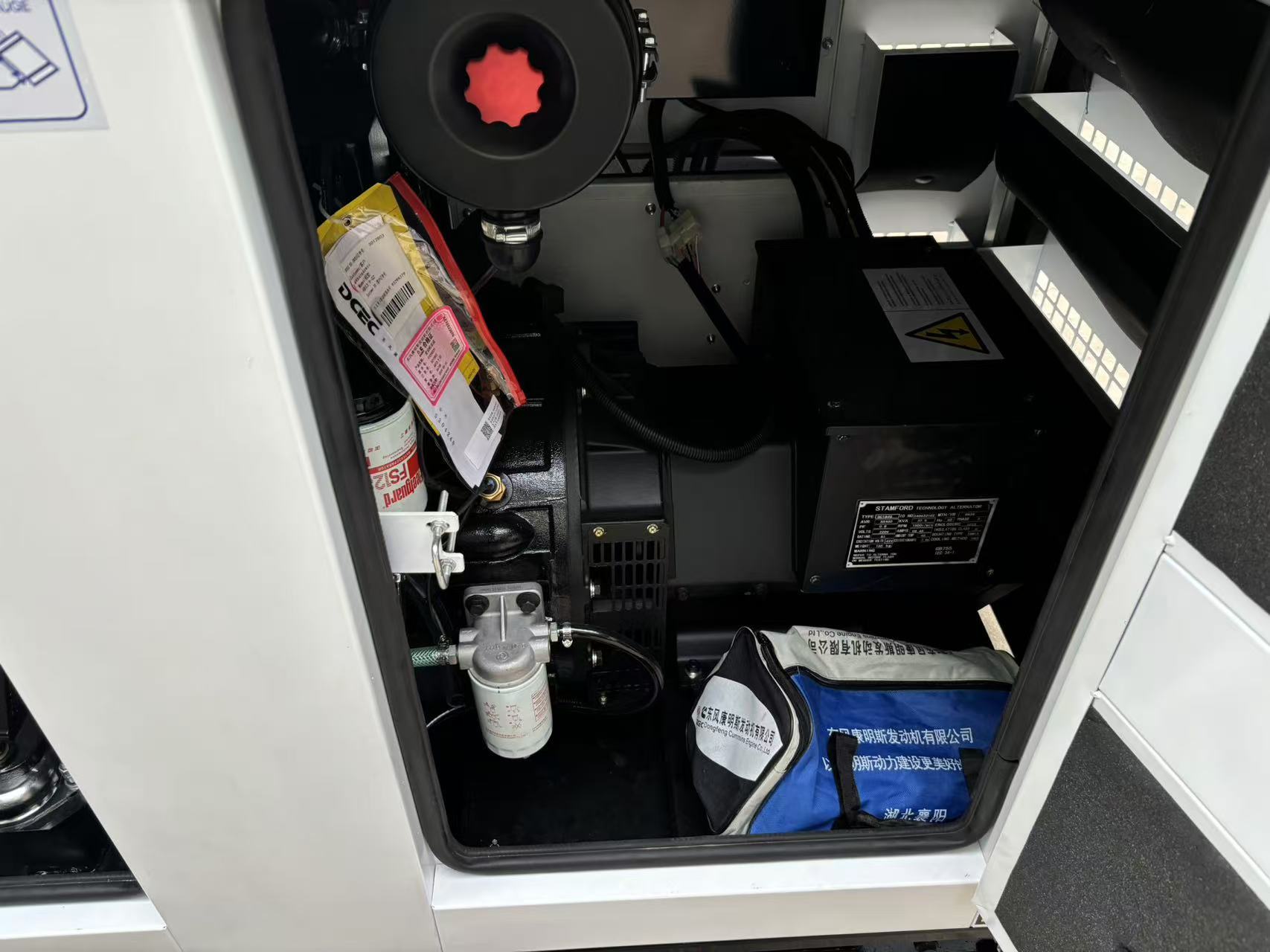

| Chinese Alternator | Model | UC224E | |
| Prime Power(kW/kVA) | 50/62.5 | ||
| Power Efficiency | 89.6% | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
| Phases | 1/3P | ||
| Voltage | 400/230V | ||

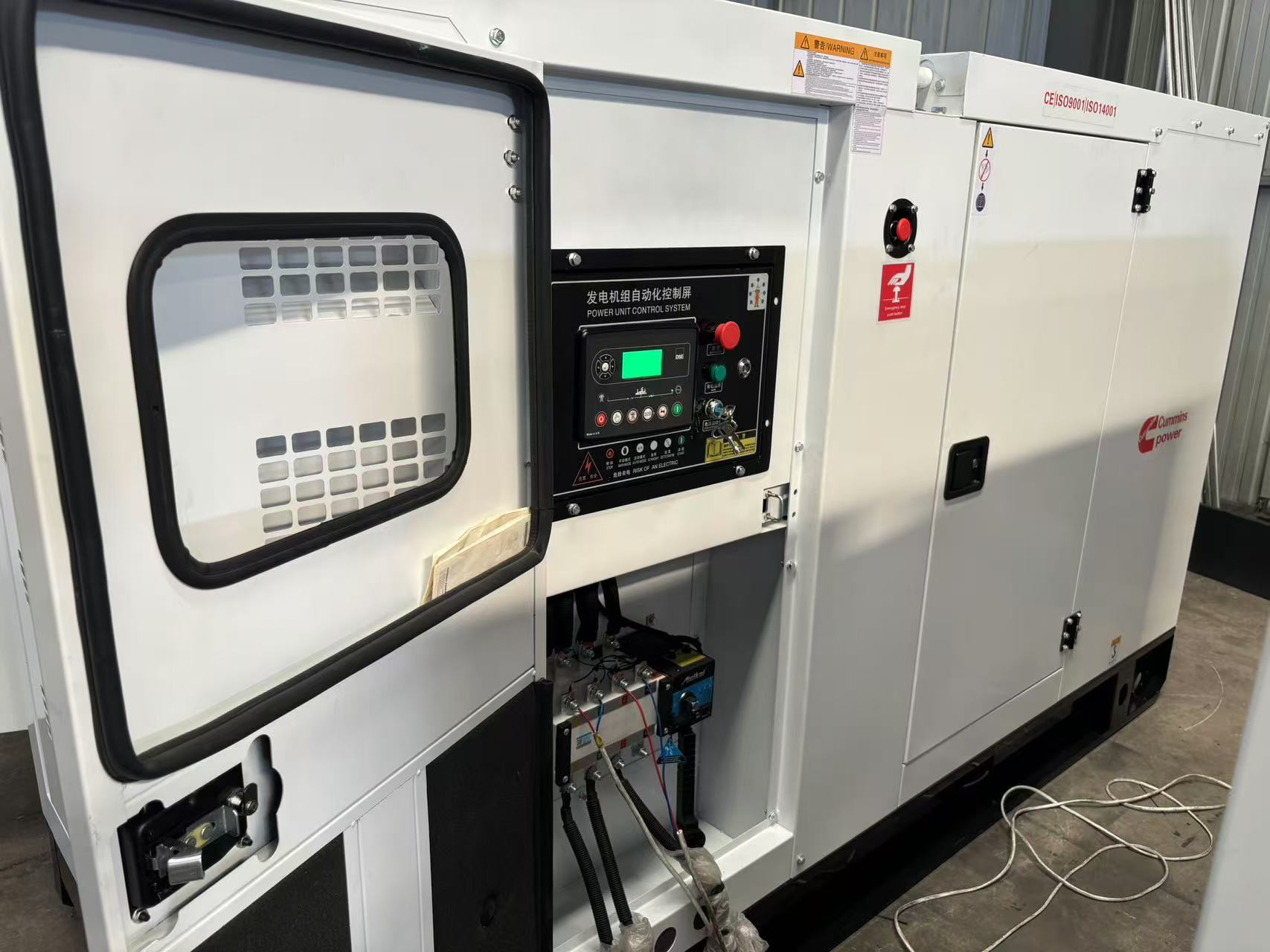

| Controller | Smartgen brand | HGM6120 | |

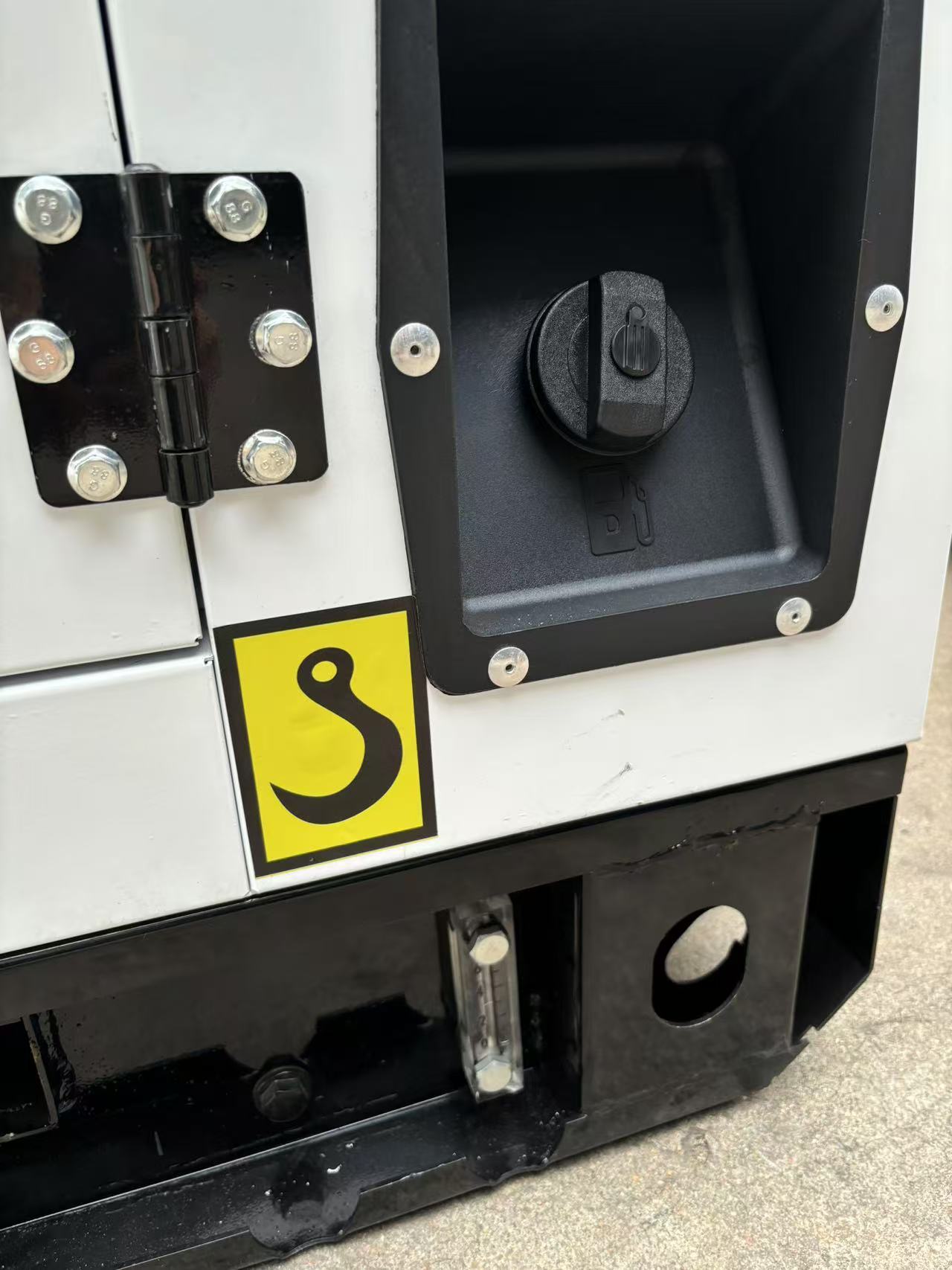

| Fuel tank | sub-base | 8hrs | |

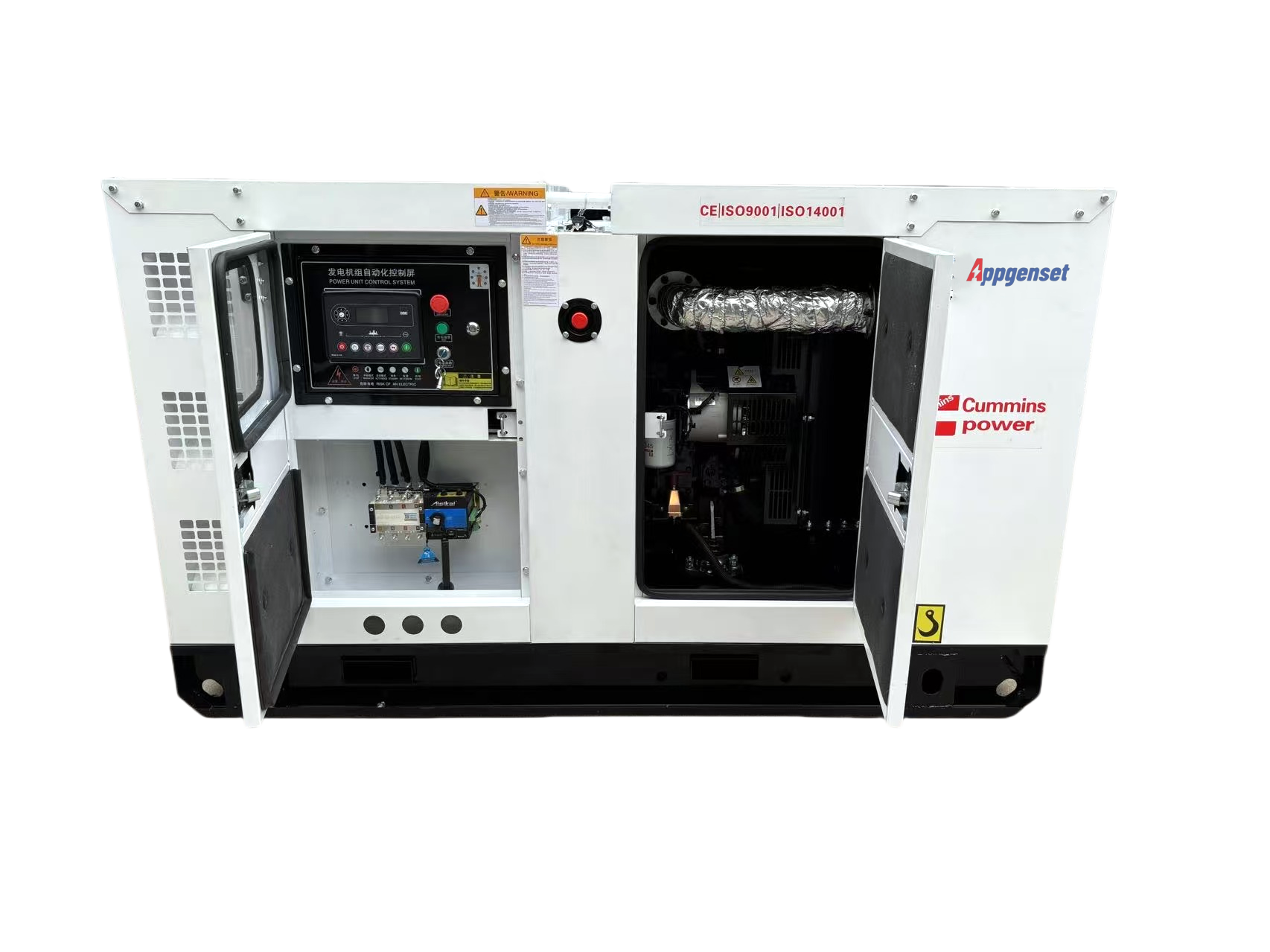

| ATS | optional | ||
| Overall Size(mm) | Length | 2450 | |
| Width | 1050 | ||
| Height | 1250 | ||
| Gross Weight(kg) | 1150 | ||
