| MODEL | CU1250GFS | ||
| Power Pf. 0.8 | Standby | kVA | 1250 |
| kW | 990 | ||
| Prime | kVA | 1125 | |
| kW | 900 | ||

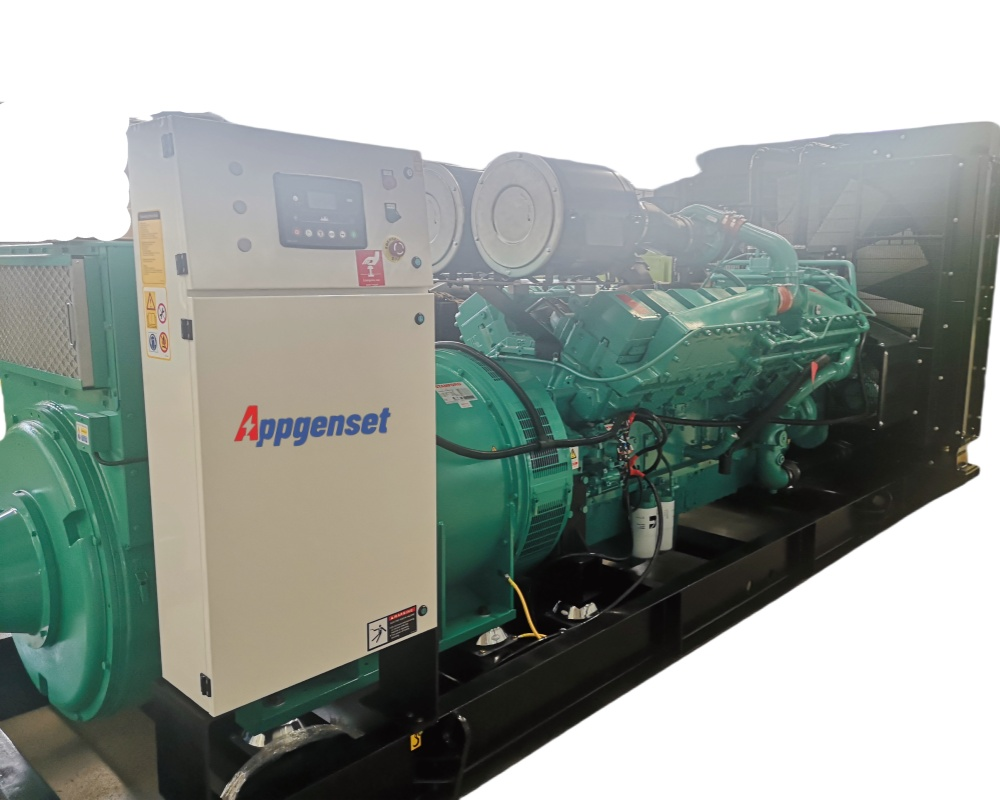

| OPEN TYPE | ||
| DIMENSIONS (LxWxH) | mm | 4420x1850x2450 |
| DRY WEIGHT | kg | 8000 |

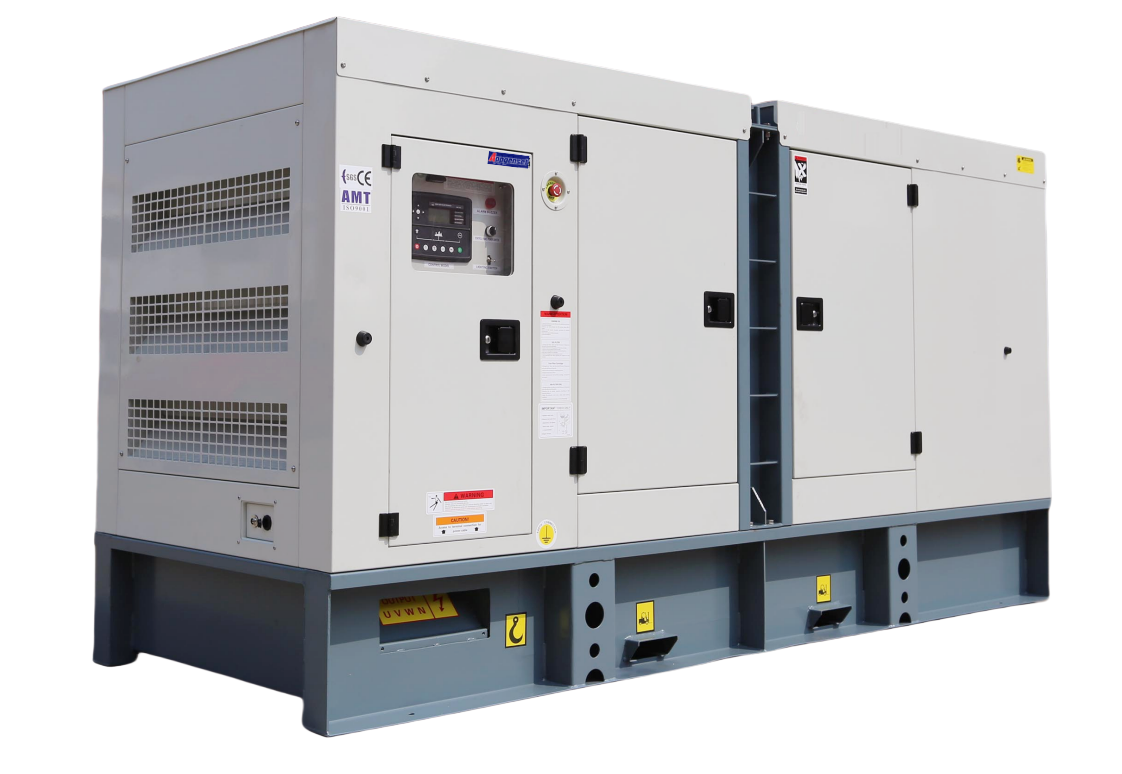

| SOUND ATTENUATED TYPE | ||
| DIMENSIONS (LxWxH) | mm | 5900x2100x2500 |
| DRY WEIGHT | kg | 10130 |
|
CUMMINS |
||
|
Model |
KTA38-G9 |
|
|
Engine Power Output at standby rpm |
kWm |
1090 |
|
HP |
1482 |
|
|
Aspiration and Cooling |
Turbocharged and intercooled |
|
|
Total Displacement |
Litre |
38 |
|
No. of Cylinders and Build |
12 V |
|
|
Engine Speed |
rpm |
1500 |
|
Bore and Stroke |
mmxmm |
159x159 |
|
Compression Ratio |
14.5:1 |
|
|
Governor |
GCS |
|
|
Fuel Consumption at 75% load |
L/hr |
155 |
|
Fuel Tank Capacity |
Litre |
1240 |
|
Oil Capacity |
Litre |
151 |
|
Design |
Brushless single bearing, revolving field |
|
Stator |
2/3 pitch |
|
Rotor |
Single bearing, flexible disc |
|
Insulation System |
Class H |
|
Standard Temperature Rise |
125 - 163°C Continuous |
|
Exciter Type |
Self Excited |
|
Phase Rotation |
A (U), B (V), C (W) |
|
Alternator Cooling |
Direct drive centrifugal blower fan |
|
AC Waveform Total Harmonic Distortion |
No load < 1.5%. Non distorting balanced linear load < 5% |
|
Telephone Influence Factor (TIF) |
<50 per NEMA MG1-22.43 |
|
Telephone Harmonic Factor (THF) |
<2 |
