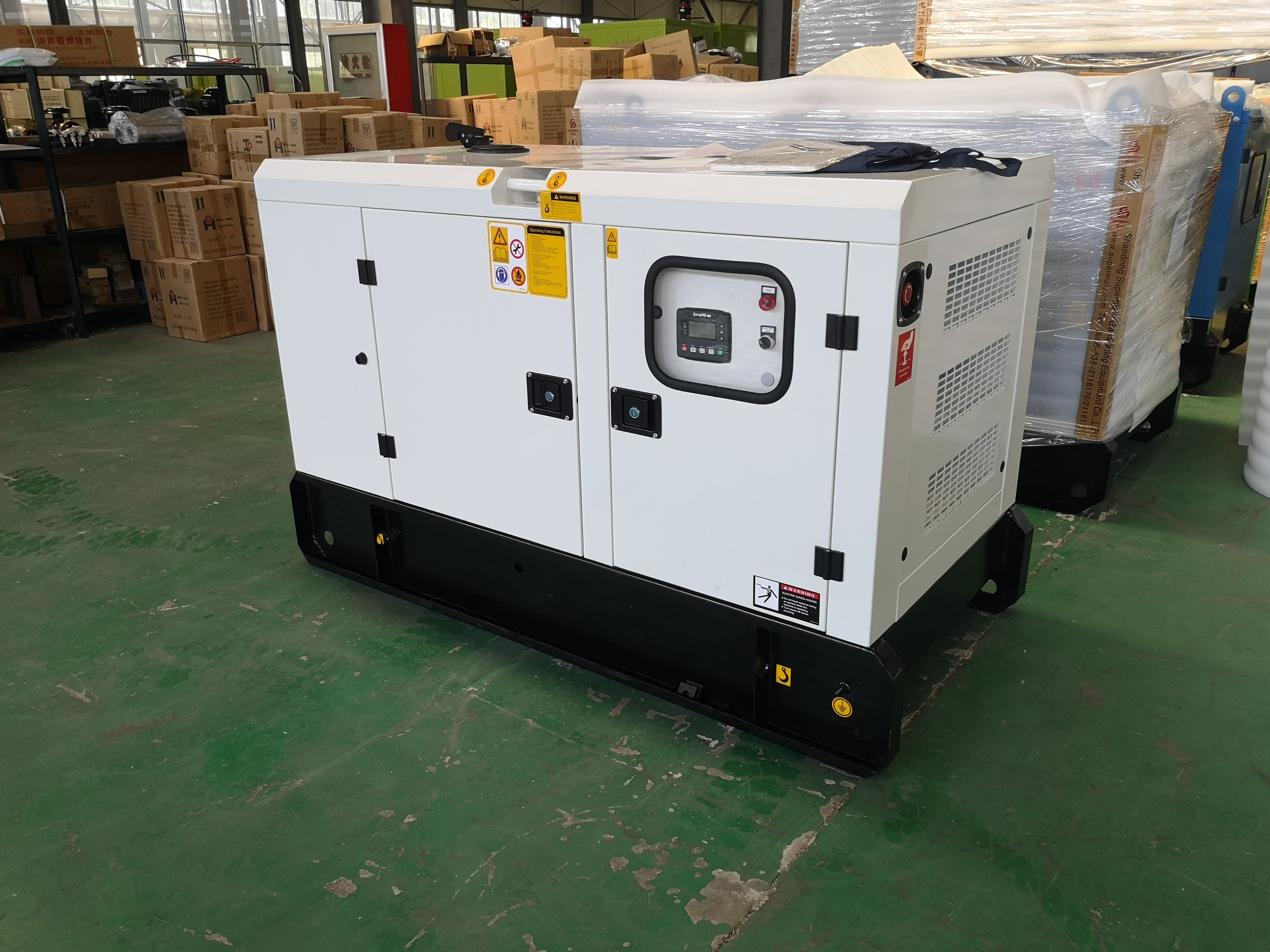

| CUMMINS 30KVA DIESEL GENERATOR SPECIFICATION | |||
| Voltage:220/127V/1800r/m | |||
| Frequency:60Hz | |||
| Power factor:0.8 | |||
| Phase:3Ph | |||
| Protection degree: IP23 | |||
| Insulation Class: H | |||
| Efficiency more than: 85% | |||
| Generator passed CE certificate | |||
| Generator passed ISO certificate | |||
| warranty:one year or 1200running hrs whichever comes first. | |||
| Genset Model | Silent Type | CU30GES | |
| Standby Power (KW/KVA) | 26.4/33 | ||
| Prime Power(KW/kVA) | 24/30 | ||
| CUMMINS Diesel Engine | Model | 4BT3.9-G2 | |
| Type | water-cooled, in line, 4-stroke, direct injection | ||
| Rated Power(kW) | 36 | ||
| Aspiration | Turbocharged | ||
| No.of Cylinder | 4 | ||
| Bore x Stroke(mm) | 102x120 | ||
| Displacement | 3.9 | ||
| Compression Ratio | 18:1 | ||
| Noise Level (dBA) | 75-85 | ||
| Electronic Governor Rate | ≦1% | ||
| Exhaust Temperature(°C) | 463 | ||
| Lub oil Capacity(L) | 10.9 | ||
| Rated Fuel Consumption75% (L/h) | 7.3 | ||
| STAMFORD original Alternator | Model | S0L2-P1 | |
| Power(kW/kVA) | 24/30 | ||
| Voltage Regulation | ≦±1 | ||
| Excitation Type | Brushless 100% copper | ||
| Controller | Deepsea brand | DSE6120 | |
| Fuel tank | sub-base | 8hrs working capacity | |
| Overall Size(mm) | Length | 2450 | |
| Width | 1150 | ||
| Height | 1250 | ||
| Gross Weight(kg) | 1095 | ||
| With ATS,battery, battery charger,shock absorber , cummins manual book etc. | |||
| All technologies are subject to the interpretation of the technology department, subject to change without notice. | |||
