Technical Data
Rated prime power kw/ kva 15/18.7
Rated standby power kw/ kva 16.5/20.6
Rated voltage line to line V 240/120
Rated current A 45
Sound level dB(@7m) 75
|

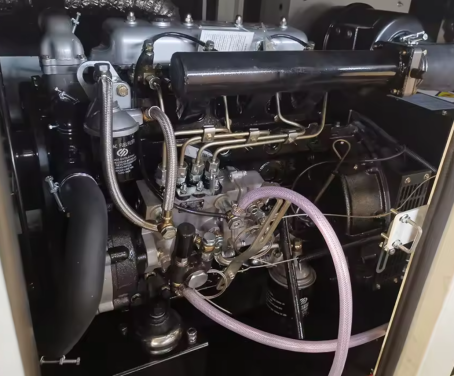

Model Aspiration No. cylinders Displacement Bore*Stroke Compression ratio Rated speed Rated net power(with fan) Governor type
|
YND485D Air natural aspirated 4 in line 2.156 85*95 18:1 1800 20 |
|
100% load(Prime power) 75% load(Prime power) 50% |
L/h |
|
Alternator
|
Model Phase Voltage Wiring Type Bearing Power factor Frequency Prime power Exciter Type Voltage regulation Protection Grade Insulation grade Altitude |
164D 3 V 240/120 3 Phase 4 wire, Y type 1 0.8 Hz 60 KVA 18.7 Brushless, self-excitation % ±0.5 IP 23 H/H m ≤1000 |

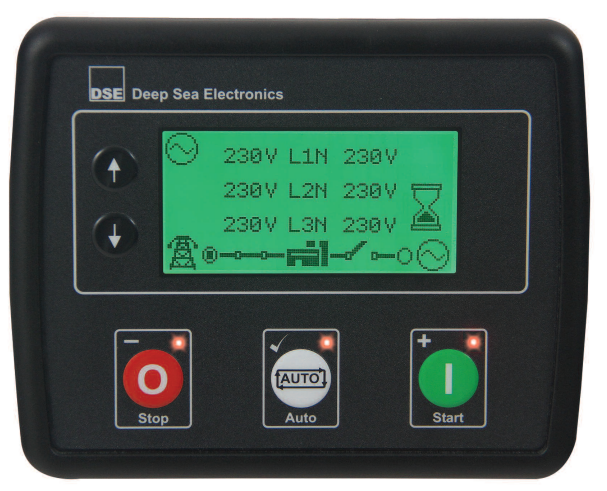

Controller-DEEPSEA
